Components
|
|
1
|
Body
|
Cast Iron/ Ductile Iron
|
|
2
|
Disc
|
Ductile Iron with nickel plated, Bronze, Stainless Steel SS304 / SS316
|
|
3
|
Stem
|
Stainless Steel
|
|
4
|
Seat
|
NBR, EPDM, VITON, PTFE
|
|
5
|
O-Ring
|
NBR
|
|
|
|
|
|
Application
|
|
1
|
standards can be according BS/ANSI/DIN/UNI/JIS
|
|
2
|
for Water, neutral Liquids, Oil and Air.
|
|
3
|
coating apox painting, 150mm
|
|
|
|
|
|
Working Pressure
|
PN6/PN10/PN16/125PSI/150PSI
|
|
Shell Test Pressure
|
1,5 x Working Pressure
|
|
Seat Test Pressure
|
1,1 x Working Pressure
|
|
|
|
|
|

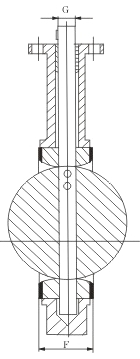

Dimension/Sizes (mm)
|
|
DN
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
Z
|
P
|
4-ø
|
|
50
|
53
|
standards: BS5155 ANSI CL125 ANSI CL150 DIN PN6 DIN PN10 DIN PN16 JIS UNI
|
145
|
32
|
77
|
42
|
12,7
|
80
|
100
|
3
|
standards: BS5155 ANSI CL125 ANSI CL150 DIN PN6 DIN PN10 DIN PN16 JIS UNI
|
|
65
|
65
|
160
|
32
|
77
|
45
|
12,7
|
89
|
120
|
3
|
|
80
|
78,9
|
165
|
32
|
77
|
45
|
12,7
|
95
|
127
|
3
|
|
100
|
104,5
|
185
|
32
|
92
|
52
|
15,9
|
114
|
156
|
5
|
|
125
|
123,5
|
200
|
32
|
92
|
54
|
19,0
|
127
|
190
|
5
|
|
150
|
156
|
210
|
32
|
92
|
56
|
19,0
|
139
|
212
|
5
|
|
200
|
203
|
245
|
45
|
115
|
60
|
22,3
|
175
|
268
|
5
|
|
250
|
251
|
285
|
45
|
115
|
66
|
28,6
|
203
|
325
|
8
|
|
300
|
301,8
|
325
|
45
|
140
|
77
|
31,8
|
242
|
403
|
8
|
|
350
|
333,3
|
368
|
45
|
140
|
77
|
31,8
|
267
|
436
|
8
|
|
400
|
389,6
|
400
|
51,2
|
197
|
87
|
33,2
|
309
|
488
|
8
|
|
450
|
440,5
|
422
|
51,2
|
197
|
106
|
38
|
328
|
540
|
9,5
|
|
500
|
491,6
|
480
|
64,2
|
197
|
132
|
41,2
|
361
|
595
|
9,5
|
|
600
|
592,5
|
562
|
70,2
|
276
|
152
|
50,7
|
459
|
695
|
13
|
|
700
|
695
|
624
|
66
|
300
|
163
|
55
|
520
|
|
|
|
800
|
794,7
|
672
|
66
|
300
|
188
|
55
|
591
|
|
|
|
900
|
564,7
|
720
|
118
|
300
|
203
|
75
|
656
|
|
|
|
1000
|
965
|
800
|
142
|
300
|
216
|
85
|
721
|
|
|
|
|
|
|
 |
|
|
|
|
Overall Dimensions & Weight of manual actuator
|
|
Size mm (in.)
|
A
|
B
|
R
|
Weight (Kg)
|
|
50(2)-100(4)
|
266,7
|
32
|
52
|
0,80
|
|
125(5)-150(6)
|
313
|
32
|
52
|
1
|
|
200(8)-250(10)
|
359
|
45
|
75,2
|
2
|
|
300(12)
|
490
|
45
|
75,2
|
3
|
|
|
|
|
|
Overall Dimensions & Weight of wormgear actuator
|
|
Model
|
Size mm (in.)
|
A
|
B
|
C
|
E
|
F
|
G
|
D
|
Weight (Kg)
|
|
3DB-15
|
50(2)-150(6)
|
52
|
45
|
74
|
52
|
152,5
|
75
|
150
|
4,8
|
|
3DB-50
|
200(8)-250(10)
|
75
|
62,75
|
101
|
75
|
250
|
86
|
300
|
11,7
|
|
3DB-120
|
300(12)-350(14)
|
81
|
80
|
118
|
81
|
227
|
83
|
300
|
14
|
|
|
|
|
|
Overall Dimensions & Weight of double-stage wormgear actuator
|
|
Model
|
Size mm(in.)
|
A
|
B
|
C
|
D
|
E
|
F
|
H
|
L
|
K
|
Weight (Kg)
|
|
3D-30/250
|
400(16)-450(18)
|
42
|
160
|
125
|
130
|
90
|
200
|
105
|
60
|
300
|
40
|
|
3D-30/300
|
500(20)
|
42
|
185
|
160
|
150
|
110
|
200
|
120
|
60
|
380
|
55
|
|
3D-30/400
|
600(24)
|
42
|
185
|
160
|
170
|
125
|
225
|
120
|
60
|
380
|
60
|
|
3D-60/800
|
700(28)-800(32)
|
50
|
228
|
185
|
190
|
155
|
155
|
125
|
78
|
380
|
90
|
|
3D-120/1500
|
900(36)-1000(40)
|
65
|
266
|
200
|
230
|
192
|
192
|
200
|
120
|
450
|
160
|
|
|
